Cof Bonding Machine ST-100DW
Overview

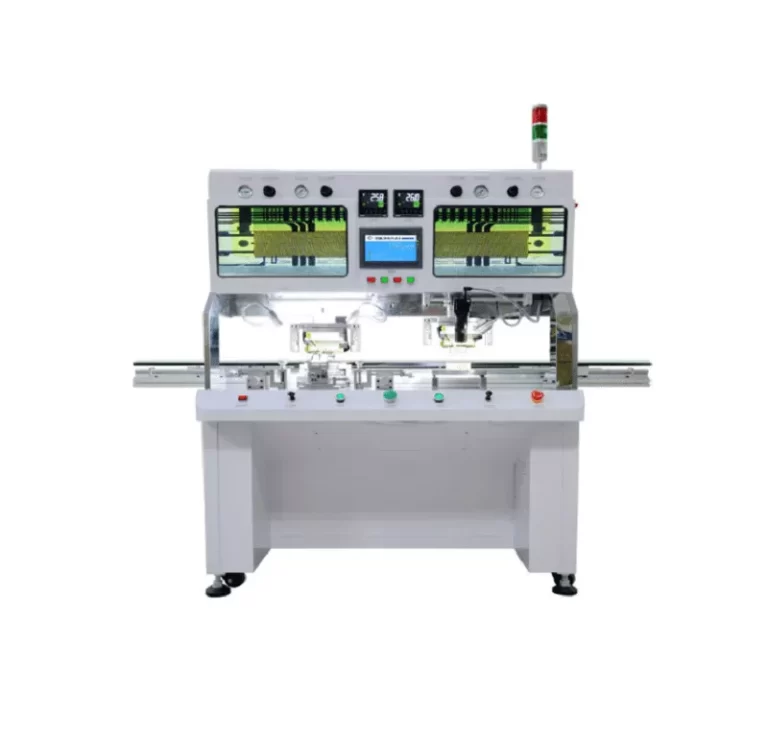

Doule Head Bonding Machine
Effeciency and Accurate
This product is used in a variety of FPC, COF, TAB and LCD Panel and PCB combination bonding, is reflected in a variety of sizes LCD vertical, horizontal, vertical band, horizontal belt, black belt, black, colored thread, ribbon , multi-line, black, black and white, vertical half display,horizontal half breakdown maintenance.
ST-100DW double head lcd led tv panel cof bonding machine
Machine Type: Double head bonding machine
Machine size: 1800X1200x1520mm
Voltage: AC 220V±10%，50HZ，3500W
Bonding Head size: 50*12mm (68*1.2mm Optional)
Machine Weight: 400kgs
Supply Pressure: 0.1~0.7Mpa Dry air source
Application
LCD size up to 100 inches
Suitable For 2K/4K LCD Screen Repair
For Flat and curved screen panel
ACF COF/TAB/FPC Replacement for LCD TV screen
Each head size: 50X1.2X10MM 50X2.0X10MM (The size of the bonding head can be changed according to the COF size)
- Rework Process Inspection Camera
| Device Model | ST-B100DW |
|---|---|
| Specification | Double Head |
| Support Max LCD size | 100 inch (Can be customized) |
| Heating mode | Pulse heating |
| Working precision | ≤±0.01mm |
| Working capacity（PCS/HOUR） | 45PCS |
| Machine size | 1800mm (L) ×1200mm (W) ×1400mm(H) |
| Input Power | AC220V±10%,50-60 Hz |
| Rated Power(W) | 4000W |
| Work pressure | 0.4-0.8Mpa |
| Operation mode | 7inch touch screen control |
| Alignment system | 2 High definition C/LCCD camera |
| Temperature error range | ±0.5°C |
| Programming control device | PLC controller |
| TAB fixture | micrometer X, Y, Z Axis adjust |
| Platform moving | Manual operate |
| Hot press head size | Left:2.0mm*50mm;Right:1.2mm*5 0mm |
